Product Description

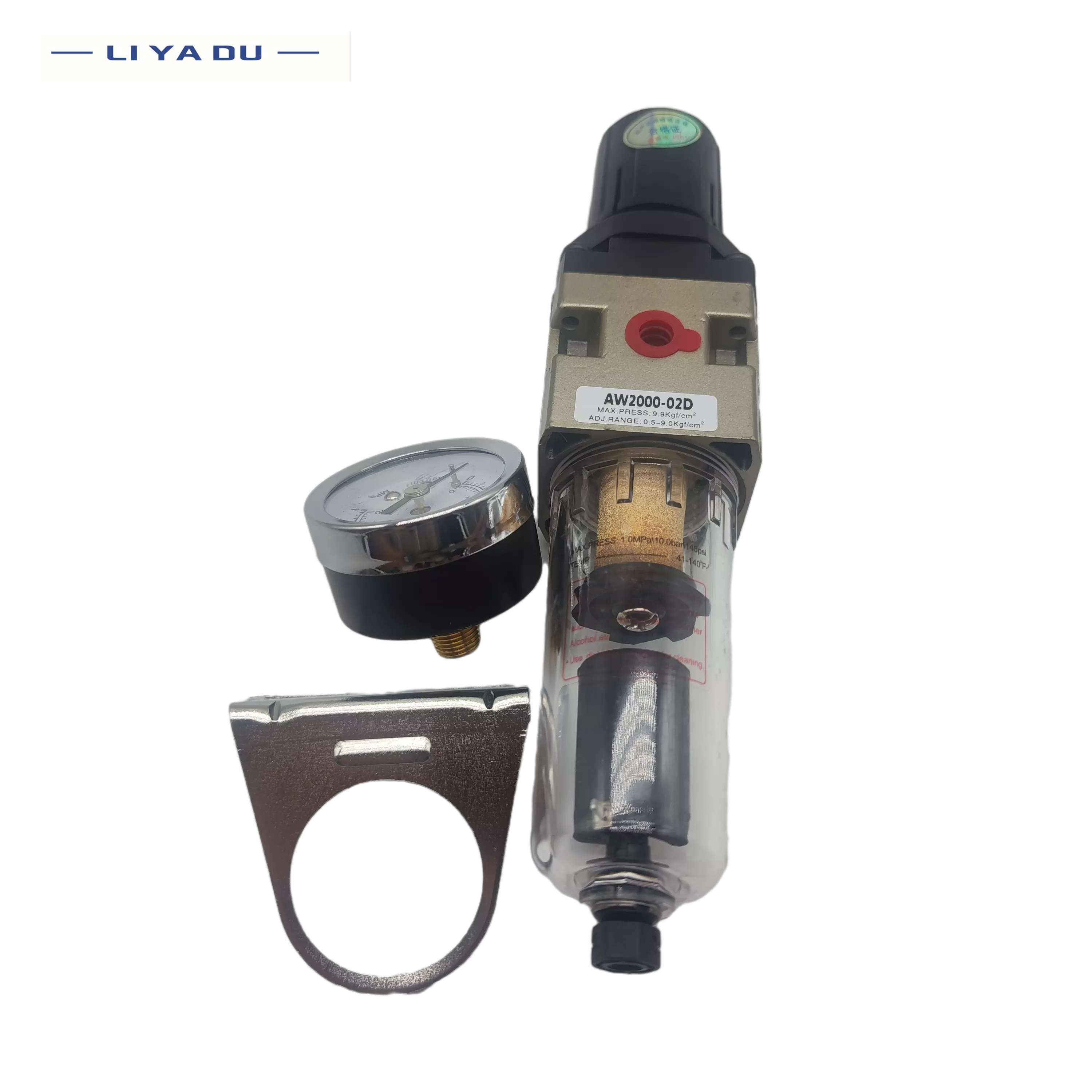

Well-run equipment, specialist income crew, and better after-sales services; We're also a unified major family, anyone stay with the organization value "unification, determination, tolerance" for OEM Manufacturer China SMC Type Air Filter Single Piece Pressure Reducing Valve Aw2000-02/02D Automatic Drain Air Source Processor Filter, Our clients mainly distributed in the North America, Africa and Eastern Europe. we can supply high quality products with the very competitive price.
OEM Manufacturer China Pressure Regulator, Pneumatic, With the advanced workshop, skilled design team and strict quality control system, based on mid- to high-end marked as our marketing positioning, our merchandise are fast selling onto European and American markets with our own brands such as below Deniya, Qingsiya and Yisilanya.
| Order No. | AW2000-02 |
| Ensured Pressure Resistance | 1.5MPa (15kgf/cm2) |
| Highest Working Pressure | 1.0MPa (10kgf/cm2) |
| Ambient and Fluid Temperature | 5~60℃ |
| *Filter Precision | 25μm |
| Recommended Oil Use | Turbine No.1 Oil ISOVG32 |
| Container Material | Polycarbonate |
| Protective Cover | AC1000~2000(Not Available) AC2500~AC5000(Available) |
| Pressure Regulating Range | AC1000: 0.05~0.7MPa(0.5~7kgf/cm2) AC2000~5000: 0.05~0.85MPa(0.5~8.5kgf/cm2) |
| Valve Type | With Overflow |
| Model | Specifications | Accessories | Drain Function | |||||
| Note2)Rated Flow(Lmin) | Note3)Port Size (G) | Pressure Gauge Size | Weight (kg) | Bracket | Pressure Gauge | |||
| Manual Drain | Note1)Auto Drain | |||||||
| AW10O0-M5 | None | 10o | M5 | 1/16 | o.09 | B120 | G27-10-R1 | Manual Drain |
| AW2000-o1 | AW2000-01D | 550 | 1/8 | 1/8 | 0.36 | B220 | G36-10-01 | |
| AW2000-02 | AW2000-02D | 114 | ||||||
| AW3000-02 | AW3000-02D | 2000 | 1/4 | 1/8 | 0.56 | B320 | a. Air Shutoff Drain b. Manual Drain | |
| AW3000-o3 | AW3000-03D | 3/8 | ||||||
| AW4000-03 | AW4000-03D | 4000 | 3/8 | 14 | 1.15 | B420 | G46-10-02 | |
| AW4000-04 | AW4000-04D | 1/2 | ||||||
| AW4000-06 | AW4000-06D | 4500 | 3/4 | 1/4 | 1.21 | |||
| AW5000-06 | AW5000-06D | 5500 | 3/4 | 1/4 | 1.7 | |||
| AW5000-10 | AW5000-10D | 1 | ||||||
