Dimension

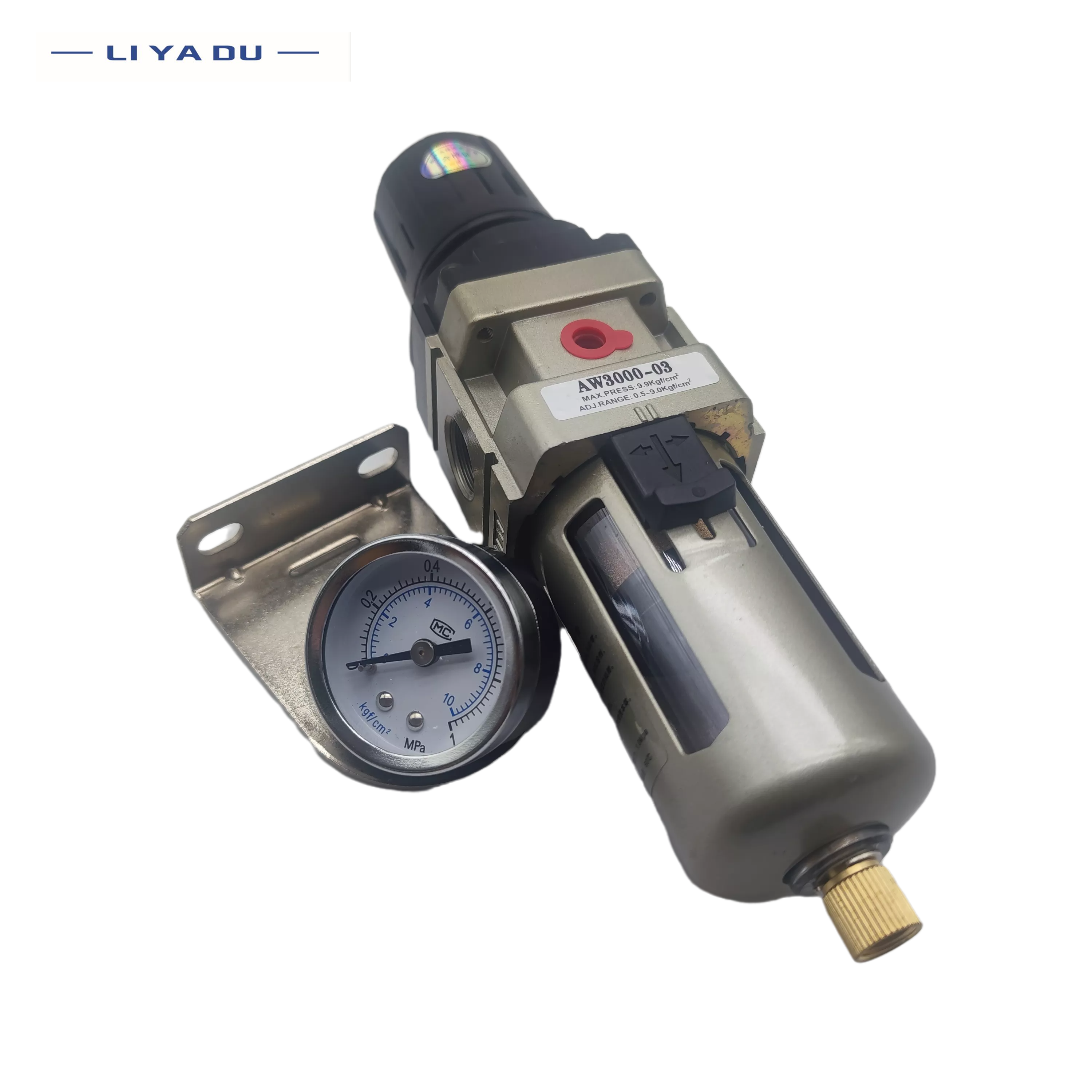

Technical Specification
| Model | AW1000-M5 | AW2000-01 | AW2000-02 | AW3000-02 | AW3000-03 | AW4000-03 | AW4000-04 | AW4000-06 | AW5000-06 | AW5000-10 |
| Port Size | M5x0.8 | PT1/8 | PT 1/4 | PT 1/4 | PT3/8 | PT3/8 | PT 1/2 | G3/4 | G3/4 | G1 |
| Pressure Gauge Port Size | M5x0.8 | PT1/8 | PT 1/8 | PT 1/8 | PT1/8 | PT 1/4 | PT 1/4 | PT 1/4 | PT 1/4 | PT1/4 |
| Rated Flow(LZMin) | 100 | 550 | 550 | 2000 | 2000 | 4000 | 4000 | 4500 | 5500 | 5500 |
| Working Media | Compressed Air | |||||||||
| Proof Pressure | 1.5Mpa | |||||||||
| Range of Regulation | 0.05-0.7Mpa | 0.05~0.85Mpa | ||||||||
| Ambient Temperature | 5-60*0 | |||||||||
| Filter Precision | 40 u m(Normal)or 5 u m(Customized) | |||||||||
| Bracket(one) | B120 | B220 | B320 | B420 | ||||||
| Pressure Gauge | Y25-M5 | Y40-01 | Y50-02 | |||||||
| Body Material | Aluminum Alloy | |||||||||
| Material Cup Material | PC | |||||||||
| Cup Cover | AW1000~AW2000:without AW3000~AW5000:with(Steel) | |||||||||
| Model Port Size A B | C D | F G | H | J K L M <DN P | ||||||||||
| AW 1000 | M5x0.8 | 25 | 109.5 | 50.5 | 25 | 25 | 38 | 30 | 4.5 | 6.5 | 40 | 2.0 | 20.5 | 28 |
| AW2000 | PT1/8.PT1/4 | 43 | 164.5 | 78 | 40 | 30 | 34 | 45 | 5.5 | 10.54 | 55 | 2.3 | 33.5 | 40 |
| AW3000 | PT1/4.PT3/8 | 53 | 211 | 92.5 | 53 | 41 | 41 | 46 | 6.5 | 8.0 | 53 | 2.3 | 42.5 | 56 |
| AW4000 | PT3/8.PT1/2 | 70 | 262.5 | 112 | 70 | 50 | 50 | 54 | 8.5 | 10.5 | 70 | 2.3 | 52.5 | 73 |
| AW4000-06 | G3/4 | 75 | 267 | 114 | 70 | 50 | 50 | 56 | 8.5 | 10.5 | 70 | 2.3 | 52.5 | 73 |
| AW5000 | G3/4.G1 | 90 | 345 | 115 | 90 | 50 | 70 | 62 | 9 | 12 | 70 | 2.3 | 52.5 | 75 |
