Product Description
Our enterprise since its inception, constantly regards product good quality as organization life, constantly improve production technology, strengthen merchandise high quality and continuously strengthen enterprise total good quality administration, in strict accordance with all the national standard ISO 9001:2000 for Discountable price China Series Air Regulator Ar2000-02 SMC Pressure Regulator, In case you are interested in almost any of our objects, make sure you never wait to call us and go ahead and take initial step to construct up a successful business romance.
Discountable price China Series Air Regulator, Air Pressure Regulator, The products and solutions has a good reputation with competitive price, unique creation, leading the industry trends. The company insists on the principle of win-win idea, has establishedglobal sales network and after-sales service network.
| Condition | New |
| Warranty | 1 Year |
| Applicable Industries | Building Material Shops, Manufacturing Plant, Machinery Repai |
| Place of Origin | Shangdong，China |
| After Warranty Service | Video technical support, Online support, Spare parts |
| Local Service Location | None |
| Showroom Location | None |
| Type | Source Treatment Unit |
| Brand Name | li du ya |
| Working pressure | 0.05-0.85MPa |
| Body Material | Aluminum Die-casting Forming |
| Working Temperature | 5~60℃ |

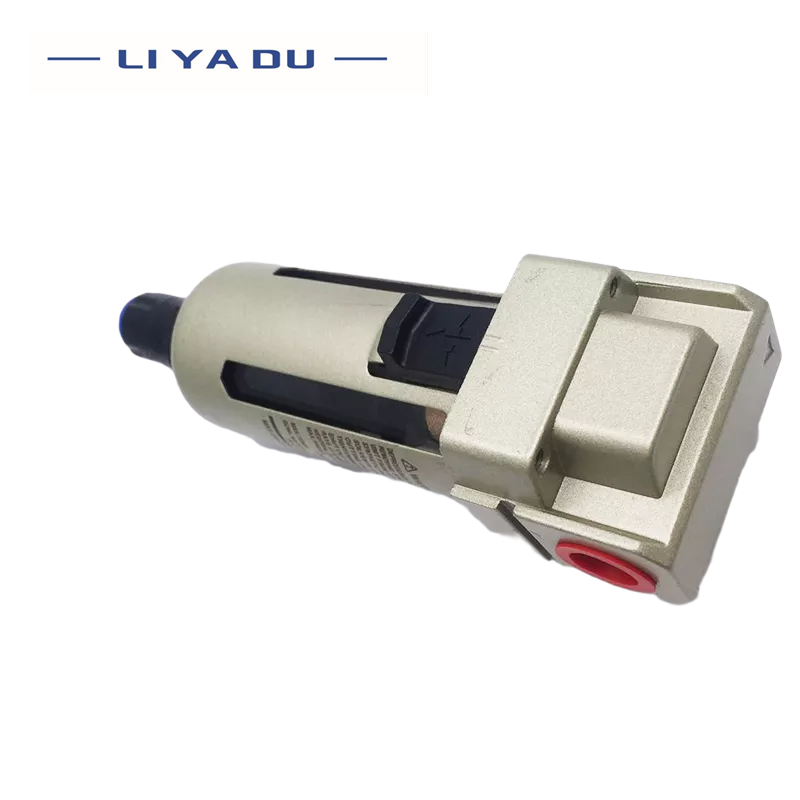

| Product name | air filter |
| Port size | G1/8"，G1/4"，G3/8"，G1/2" |
| Highest Working Pressure | 1.0Mpa(10.2kgf/cm2) |
| Pressure Gauge Connector | 1/8'' |
| Operating Fluid | Air |
| Power | Pneumatic |
| Marketing Type | New Product 2021 |
| Model | AF1000- M5 | AF2000- 01 | AF2000- 02 | AF3000- 02 | AF3000- 03 | AF4000- 03 | AF4000- 04 | AF4000- 06 | AF5000- 06 | AF5000- 10 | |
| Port Size | M5°0.8 | PT1/8 | PT14 | PT114 | PT3/8 | PT3/8 | PT1/2 | G3/4 | G3/4 | 1 | |
| Water Cup Capacity | 4 | 15 | 15 | 20 | 20 | 45 | 45 | 45 | 130 | 130 | |
| Rated flow(LMtin) | 110 | 750 | 750 | 1500 | 1500 | 4000 | 4000 | 6000 | 7000 | 7000 | |
| Working Media | Cormpressed Air | ||||||||||
| Proof Pressure Max.Working Pressure | 1.5Mpa 0.85Mpa | ||||||||||
| Ambient Temperature | 5-60℃ | ||||||||||
| Filter Precision | aourm(Normal)or burm(custormized) | ||||||||||
| Brackel(one) | B240A B320 | B340A | B44OA | B540A | B640A | ||||||
| Material | Body materiral | Aluminum Alloy | |||||||||
| cup materiral | PC | ||||||||||
| cup Cover | AF1000-AF2000: without AW300O-AW5000: with(Steel | ||||||||||
