Product Description
We will constantly satisfy our respected customers with our good excellent, superior value and superior assistance due to we're additional experienced and far more hard-working and do it in cost-effective way for Manufacturer for China Screw Air Compressor Parts OEM Ad402-04 Auto Drain Valve, All merchandise are manufactured with advanced equipment and strict QC procedures in buy to be certain superior quality. Welcome customers new and aged to get in touch with us for enterprise cooperation.
Manufacturer for China Air Compressor, Screw Air Compressor Parts, We'd like to invite customers from abroad to discuss business with us. We can supply our clients with high quality products and solutions and excellent service. We're sure that we will have good cooperative relationships and make a brilliant future for both parties.

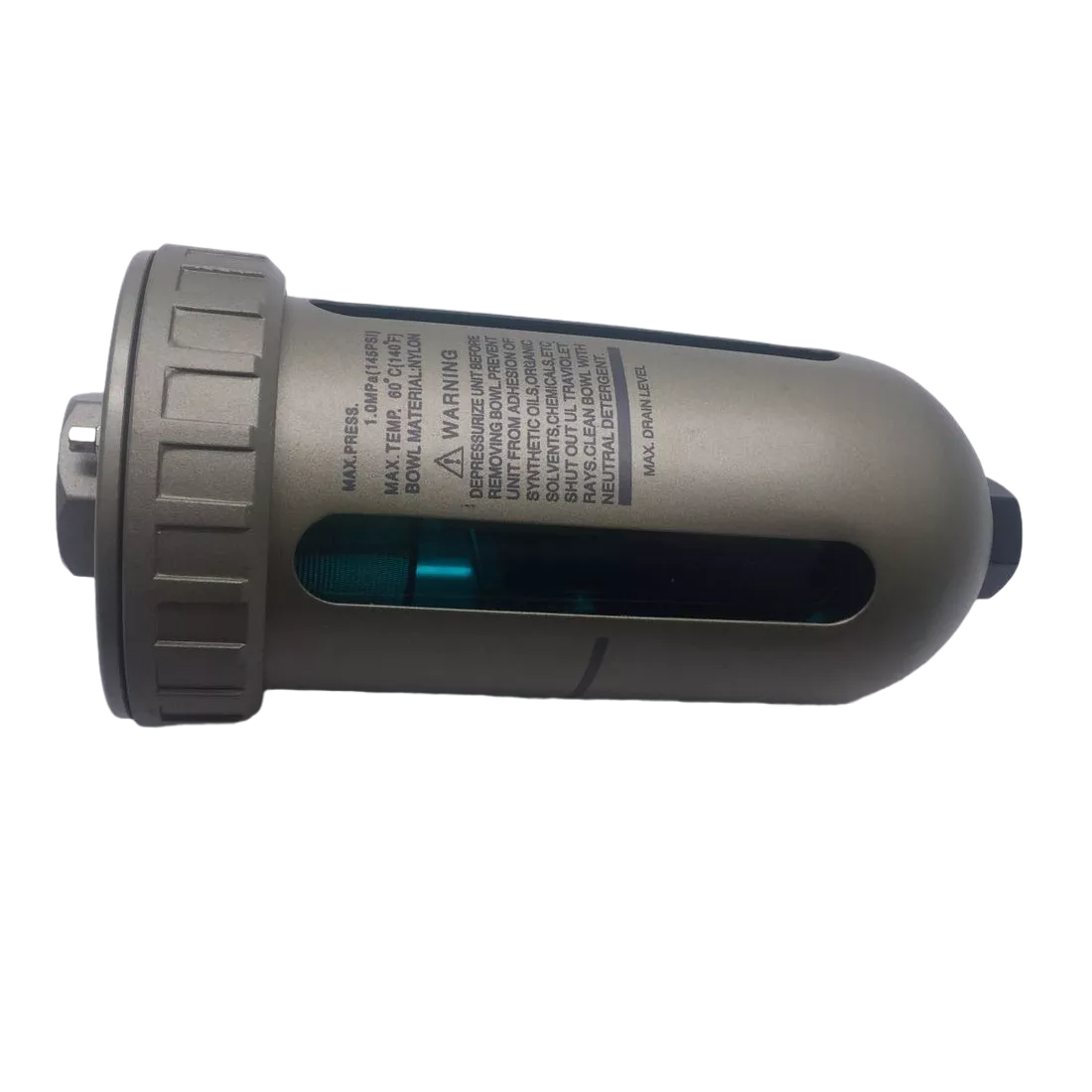

■Feature : We strive to be perfect in every detail. When there' s no pressure in cup, the floater declines because of gravity, the press cake close the inner port and the piston was pressed by spring so that the condensate water come out from the outfall. When the pressure is higher than 0.1Mpa, the piston presses upward against the spring force so that the drainage way closes. When water is condensed to some extent, the floater comes up because of buoyancy so that the inner port is open and the pressure comes inside, the piston is pressed by spring and pressure, then water is drained out.| Model | AD202-04 | AD402-04 | |
| Working Media | Air | ||
| Port Size | G1/2 | ||
| Drain Mode | Pipe Φ8 | Thread G3/8 | |
| Max.Pressure | 0.95Mpa(9.5kgf/cm²) | ||
| Ambient Temperature | 5-60℃ | ||
| Material | Body | Aluminum Alloy | |
| Seal kits | NBR | ||
| Filter Screen | SUS | ||
